Gate valve, flange DN 32
Gate valve, flange DN 32
Gate valve, flange DN 32
Gate valve, flange DN 32

Gate valve, flange DN 32

DN size
Flange dimensions DN
PE pipe diameter
(Discount %)
130,00 €
net / 1pc.
/ 1pc.

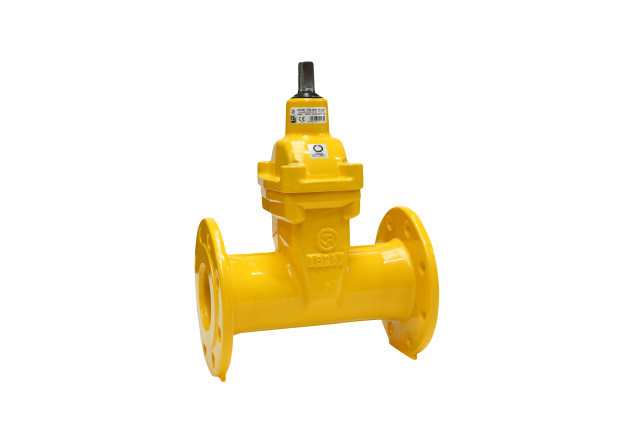

Gas flange gate valve

The housing, cover and klint are made from ductile cast iron, whereas the stem is made from stainless steel, has a rolled thread and an integrated stem flange. Installed in natural gas networks with medium operating pressure, which work in temperature from -20°C to +60°C. The installation is possible from horizontal to vertical layout.

Jafar gas gate valves guarantee uncompromised safety!

Brand
Symbol
04-30-0032-06
CN code
8481.80.61
Discount group
D
Max pressure
1.6 MPa
Material
Ductile cast iron
DN size
DN32
Protection against corrosion
Epoxy resin, min 250 microns
Min temperature
-20 °C
Max temperature
60 °C
Gross weight
5,25 kg
Total length
130 mm
Total height
215 mm
Width Total
130 mm
Group
Bar
